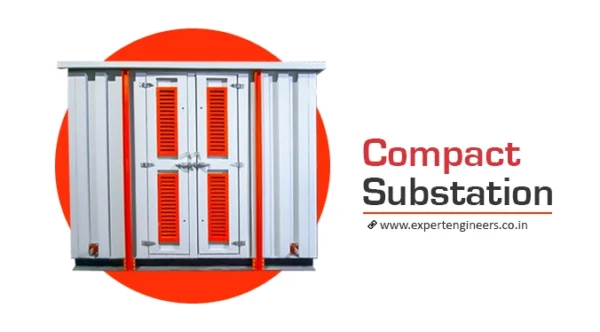

A compact substation is a type of electrical substation that is designed to occupy minimal space while still providing all the necessary functions of a conventional substation. These substations are typically used in urban areas or locations where space is limited.

The packaged substation are state of art equipments, factory assembled, self-contained, complete weather proof substation for power distribution requirments.

The packaged substation are ready to position on concrete base with minimum site installation time and cost. The equipments are of high quality and tested an complete units.

Categories: , Tags: , ,
  • Previous Product
  • MEDIUM VOLTAGE PANEL (HT PANEL)
  • Next Product
  • HT PANEL MANUFACTURER

Description

THE SALIENT FEATURES AS UNDER:

  • Cost effective

  • Assured Safety

  • Time saving

  • Eliminated environment at hazard

  • Energy Efficient

TECHNICAL DATA:

General Characteristics
Ambient Temperature Normal operating conditions -50°C to 45°C
-50°C or +60°C Derating
of MV and LV swithchboard
Standard colour RAL 7032
installation Out Door
Compartmented Yes
Type of ventilation Natural
Optional degree of protection MV and LV compartments
Transformer Compartment		 IP 54
IP 23		 (IP34 ON Request)
Rated enclosure class K 5 – 10
Applicable Standard IEC 62271-202
Electrical Characteristics
Rated Voltage (KV) 12 24
Rated Insulation Level kV rms, 50 HZ 1 min.
kV impulse 1.2/50 us		 28
75		 50
125
Rated frequency (Hz) 50 50
Rated Curremt of MV switchgear/CB’s (A) 630 630
Max. Allowable impulse current withstand kA rms – 1 s
kA peak		 52
50		 16
40
Maximum LV Current (A) 3200 3200
LV Current withstand (kA) 56/65 50/65
